Municipal

2017

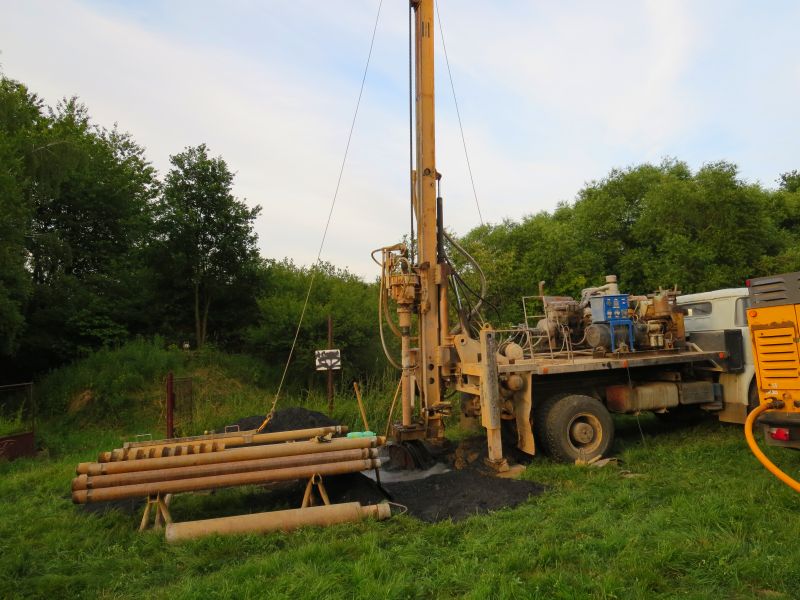

PUSTIMĚŘ - vrtání

Water treatment plant at the gas station

Pustiměř, Jihomoravský kraj


  • Elaboration of project documentation in three levels for territorial proceedings, building permits and construction realization, including report on area measurements and itemized budget for contractor selection.
  • Engineering activity for a purpose of issuing a territorial decision and building permit.
  • Construction and machine-technology modifications of the existing pumping station and borehole in order to supply municipalities Radslavice, Pustiměř and Ivanovice with drinking water.
  • Project for a new wastewater storage tank and sewer connection.
  • Project for an extension of electrical wiring, measurement and regulation (MaR) and automatic / automated process control system (ASŘTP).
LOUČKY

Improvement of the microbiological image in the pumping station


Loučky, Liberecký kraj


  • Construction of a one-stage project documentation for the building permit and realization of construction, including report on area measurements and itemized budget for contractor selection.
  • Technological and partly building modifications of the existing pumping station for the supply of drinking water.
  • Hygienic safety and improvement of organoleptic properties of water (odour).

2016

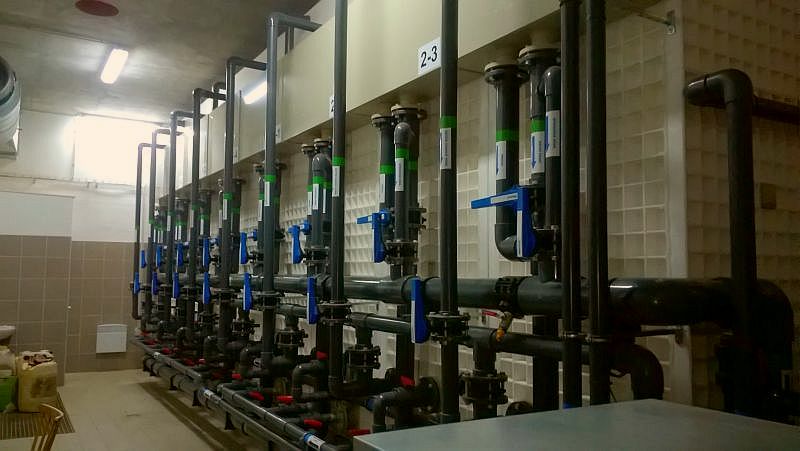

HRUŠOVANY NAD JEVIŠOVKOU - 12 kusů otevřených filtrů s mezidnem

Drinking water treatment plant

Hrušovany nad Jevišovkou, Jihomoravský kraj


  • Extension and reconstruction of the existing water treatment plant, new accumulation tanks of 15 m3,
  • Water treatment technology from boreholes, PVC piping, pumping technology.
  • Electrical wiring, technological process control systems (SŘTP).
  • Delivery of 12 pieces of open filters with interstitial space (air and water wash).

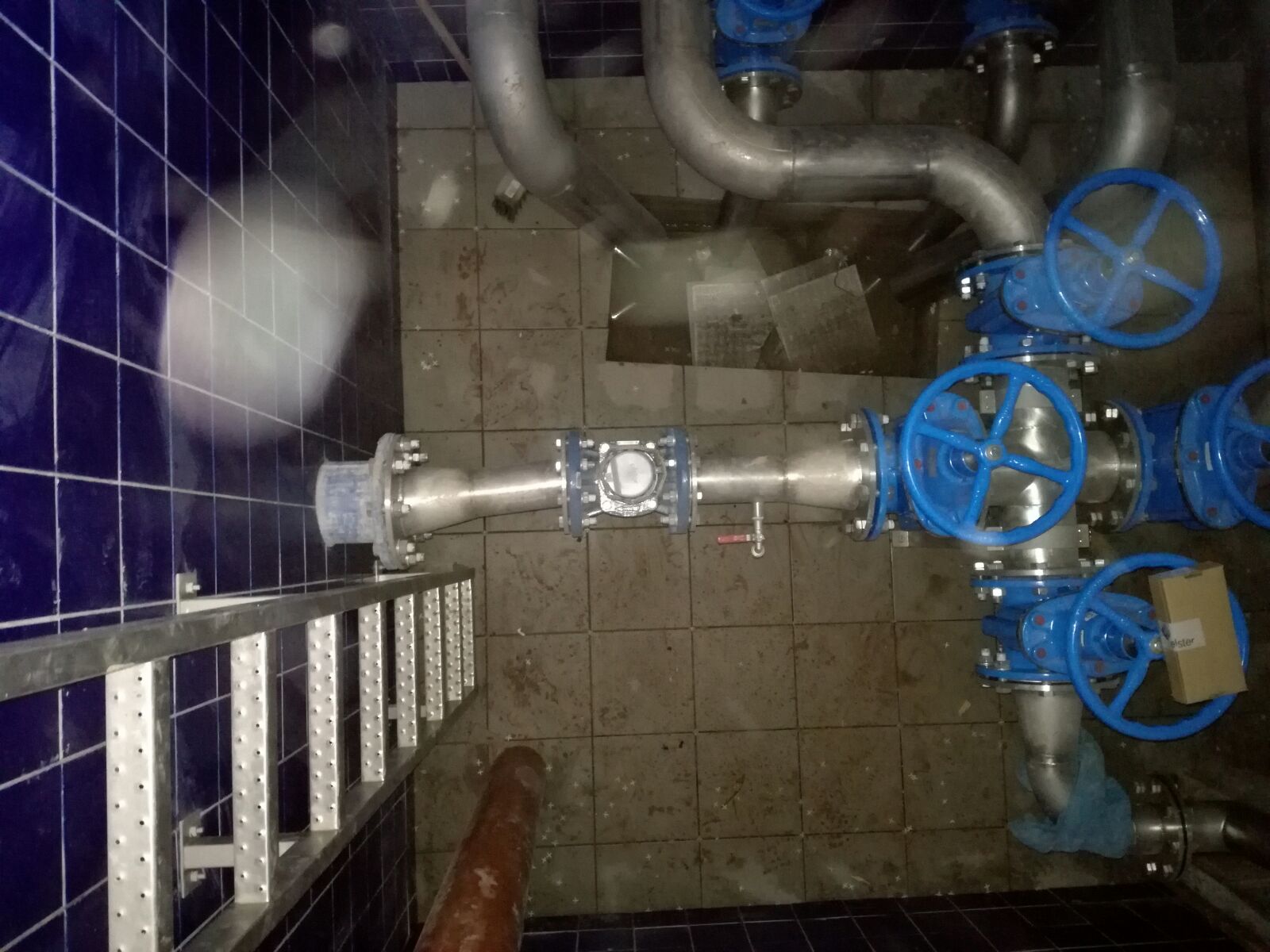

BENEŠOV U SEMIL - montáže vystrojení z nerezi

Reconstruction of water tank - 1st stage of construction

Benešov u Semil, Liberecký kraj


  • Reconstruction of two side-by-side water tanks - Old (50 m3) and New (2x100 m3) water tanks.
  • Dismantling of existing equipment, earthworks and demolition work, drainage, sewage pipelines.
  • New monolithic supporting structures, rehabilitation of storage chambers, waterproofing, insulation, installation of stainless steel fittings, ventilation.
  • Making the Klinker facade masonry at the new water tank.
  • Electrical wiring, measurement and regulation (MaR), installation of data transmission equipment for dispatching and their recovery.

2015

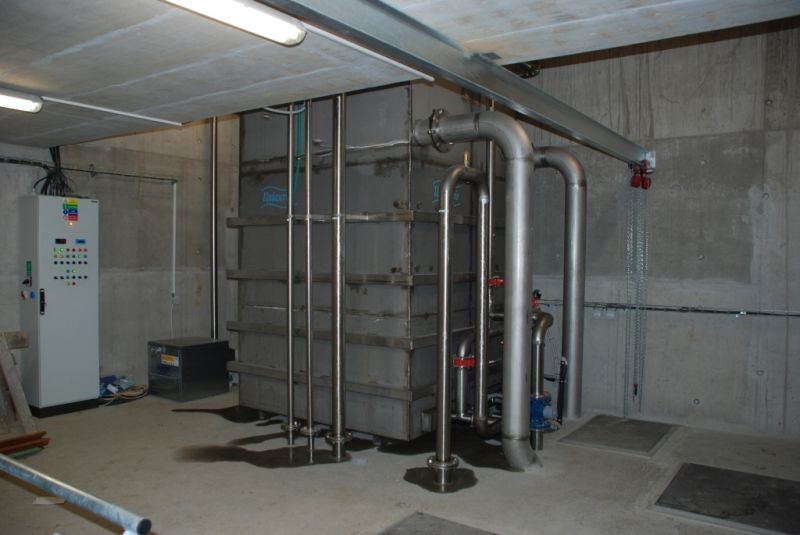

MODRAVA - MaR + trubní rozvody z nerezi

New wastewater treatment plant - water supply

Modrava, Plzeňský kraj


  • Drilling equipment, borehole water treatment technology, stainless steel piping, pumping equipment.
  • Electrical wiring, measurement and regulation (MaR).
  • Supply of open stainless steel filter with drainage system with horizontal cover sheet and air and water wash.

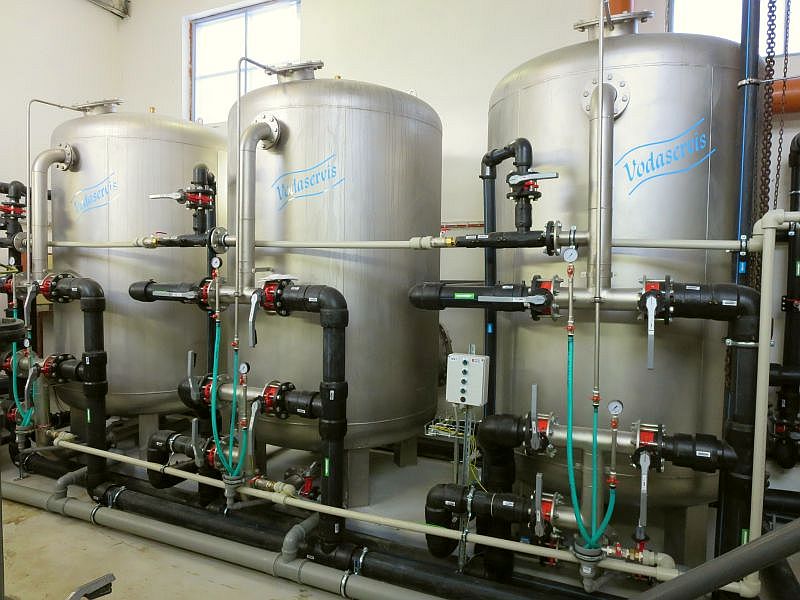

2015 ČERNOŠICE - 3x TVK

Renewel of pumping station in Radotínská Street including water treatment plant and water resources renewal (wells C1-C4 and wells next to the gas station) after the floods in 2013

Černošice, Středočeský kraj



  • Reconstruction of the water tank during operation, revitalization of 3 boreholes, installation of a storage tank for water of 20 m3.
  • Earthworks including PE water connection, dismantling of existing technology, supply and installation of new technology for water treatment from wells.
  • Electrical wiring, measurement and regulation (MaR).
  • Delivery of 3 pieces of automatic pressure stainless steel filters with a diameter of 1 600 mm, a horizontal aerator with a storage capacity of 6 m3, pumping equipment, fittings, stainless steel and PE piping.

2014

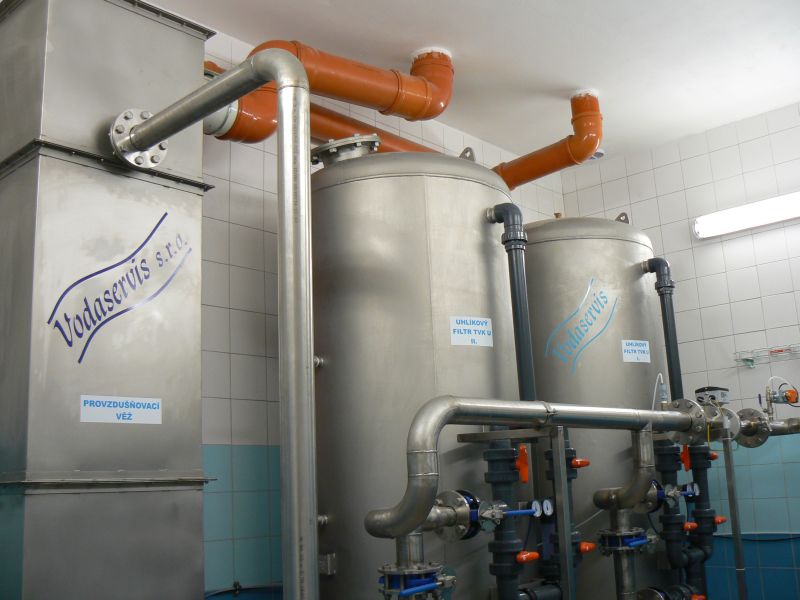

BOREK HRUDKA - PV + 2xTVK 100 UM

Reconstruction of water treatment plant

Borek, Hrudka, Liberecký kraj


  • Dismantling of existing technology, construction work.
  • Supply and installation of new water treatment technology from spring.
  • Electrical wiring, measuring and regulation (MaR), data transmission equipment for dispatching.
  • Pre-chlorination, sorption: Supply of 2 pressurized TVK 100 UM stainless steel filters with granular activated carbon with a diameter of 1,000 mm, aeration: PVS 661 stainless steel aeration tower and chlorination to accumulated treated water.
  • Delivery of pumping equipment, fittings and stainless steel piping.
2014 DEBRNÉ - TVK + potrubí z PVC

Water treatment plant in the village

Debrné, Královehradecký kraj



  • Reconstruction of the water treatment plant, disassembly of existing technology, construction works, supply and installation of new technology for water treatment from a surface source to drinking water.
  • Electrical wiring, measurement and regulation (MaR) including visualization and data transmission.
  • Delivery of two-stage filtration through pressurized stainless steel filters with a diameter of 1,400 mm, pumping technology, fittings and pipelines made of PVC and stainless steel.

2013

ŽERNOVNÍK - 2 otevřené rychlofiltry – pískový a odmanganovací

Expansion of water tank and strengthening of water resources in the village Rozšíření vodojemu a posílení vodních zdrojů v obci

Žernovník, Jihomoravský kraj



  • Work on new water tank, the existing pumping station and well.
  • Installation of new technology for water treatment from boreholes (2 open fast filters - sand and manganese).
  • Supply and installation of boreholes, accumulation tanks, stainless steel piping, fittings, pumping equipment.
  • Electrical wiring, measurement and regulation (MaR).

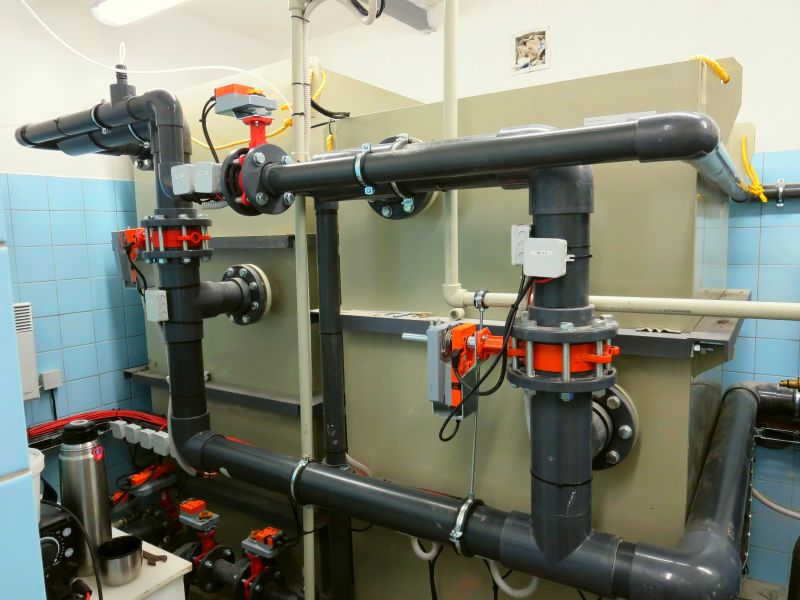

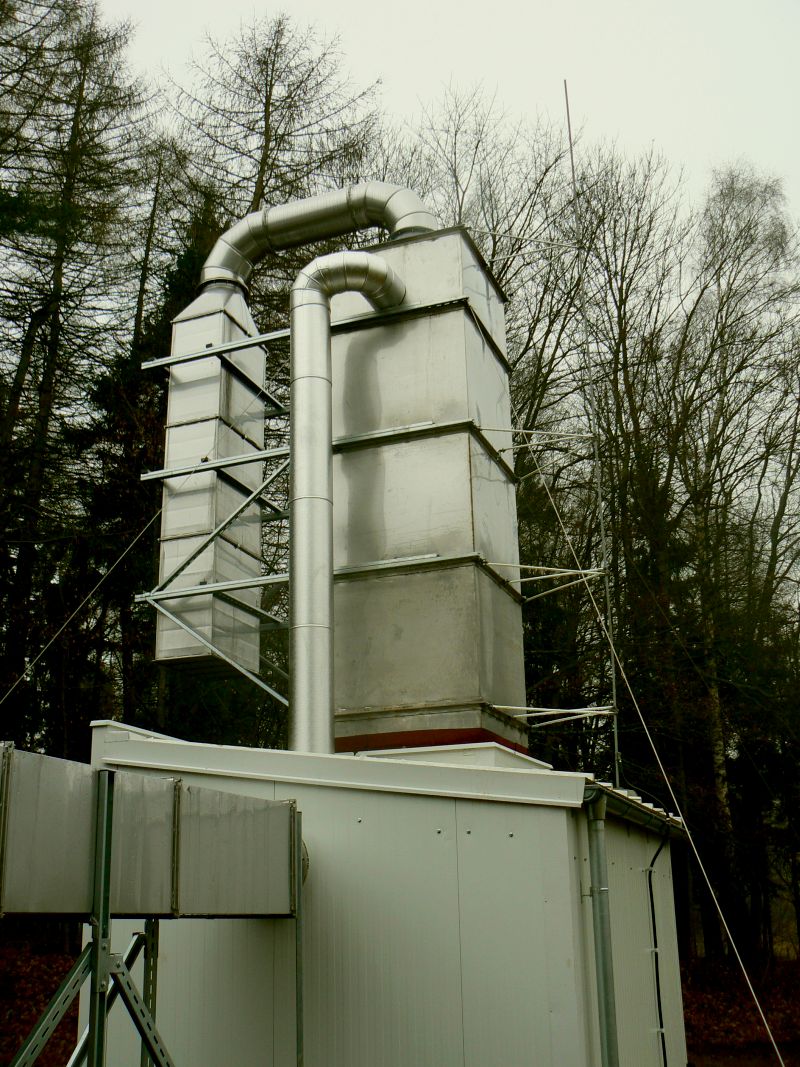

ČERVENÝ KOSTELEC - PV

Installation of a new stripping column (water tank V Polích) and reconstruction of a stripping column (old water tank)

Červený Kostelec, Královéhradecký kraj



  • Delivery and assembly of two stripping columns (stainless steel aeration towers),
    disassembly of existing stripping columns, construction works.
  • Electrical wiring and measurement and regulation (MaR), pipework, fittings and soundproofing.
