UMUV Mobile Water Treatment Plant

Stainless steel or plastic UMUV 1 to 15 allows water treatment from various sources of underground and surface water at minimal cost. It is suitable for fast deployment in areas affected by interrupted drinking water supply.

Leaflet UMUV Mobile Water Treatment Plant for Underground and Surface Water - 1763 kB

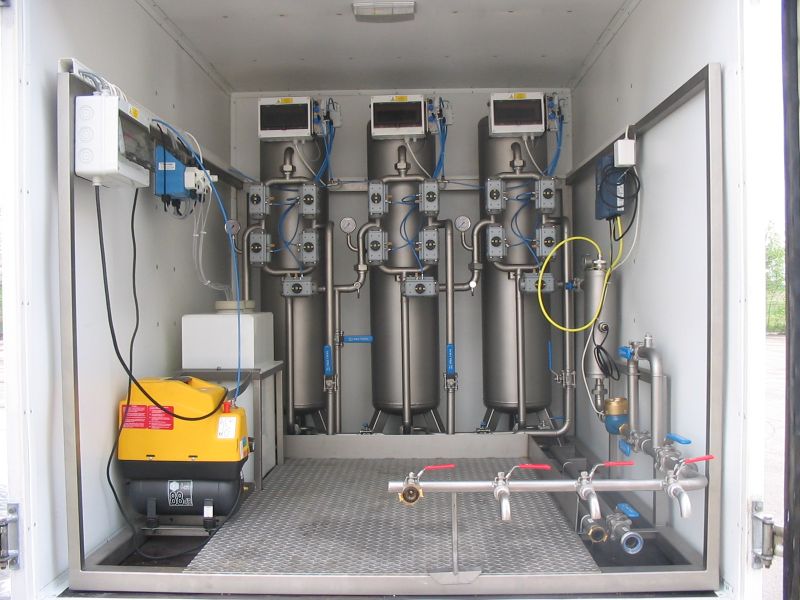

UMUV Mobile Water Treatment Plant.

Technical Description:

  • Power plant: gasoline electric generator.
  • Base pump from the water source for maximum camber of 15 m.
  • Accumulation water tank.
  • Chemical dosing system.
  • Filtration.
  • Double disinfection.
  • Output accumulation of treated water with a capacity of 400 l.
  • Outlet pump with pressure vessel for discharge up to 20 m.
  • Configuration of sampling taps.
  • Pipe fittings made of AISI 304/EN 1.4301 stainless steel or plastic (PVC-U).

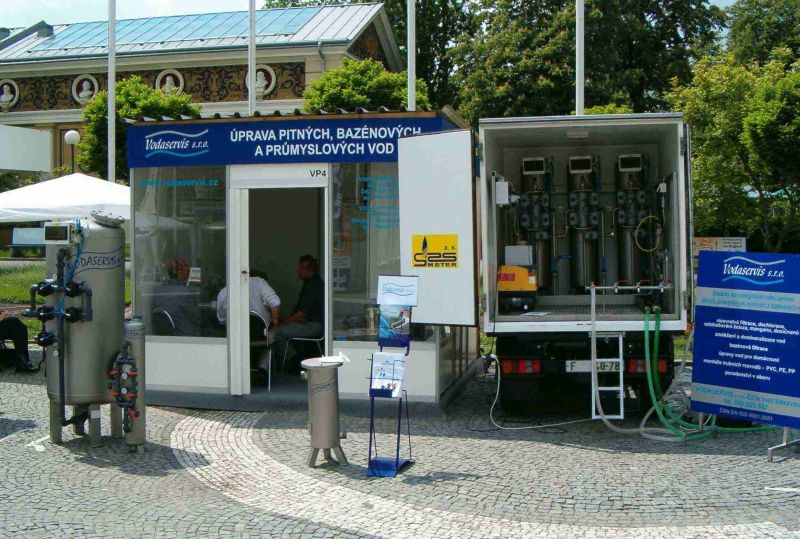

UMUV Mobile Water Treatment Plant.

Removal of:

  • Insoluble matter.
  • Iron, manganese, aluminum.
  • Humic substances.
  • Color and turbidity.
  • Ammonium ions NH4.
  • Heavy metals (lead, arsenic, cadmium).
  • Partially aggressive CO2.
  • Radionuclides (e.g. radon).
  • High proportion of minerals (salts) – UMUV can be supplemented with reverse osmosis.
